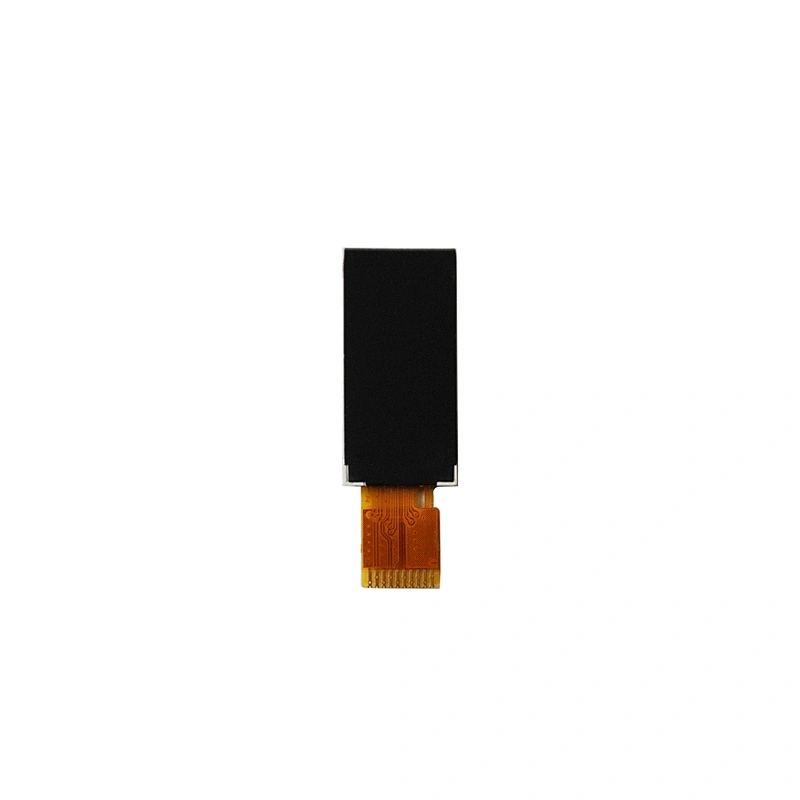

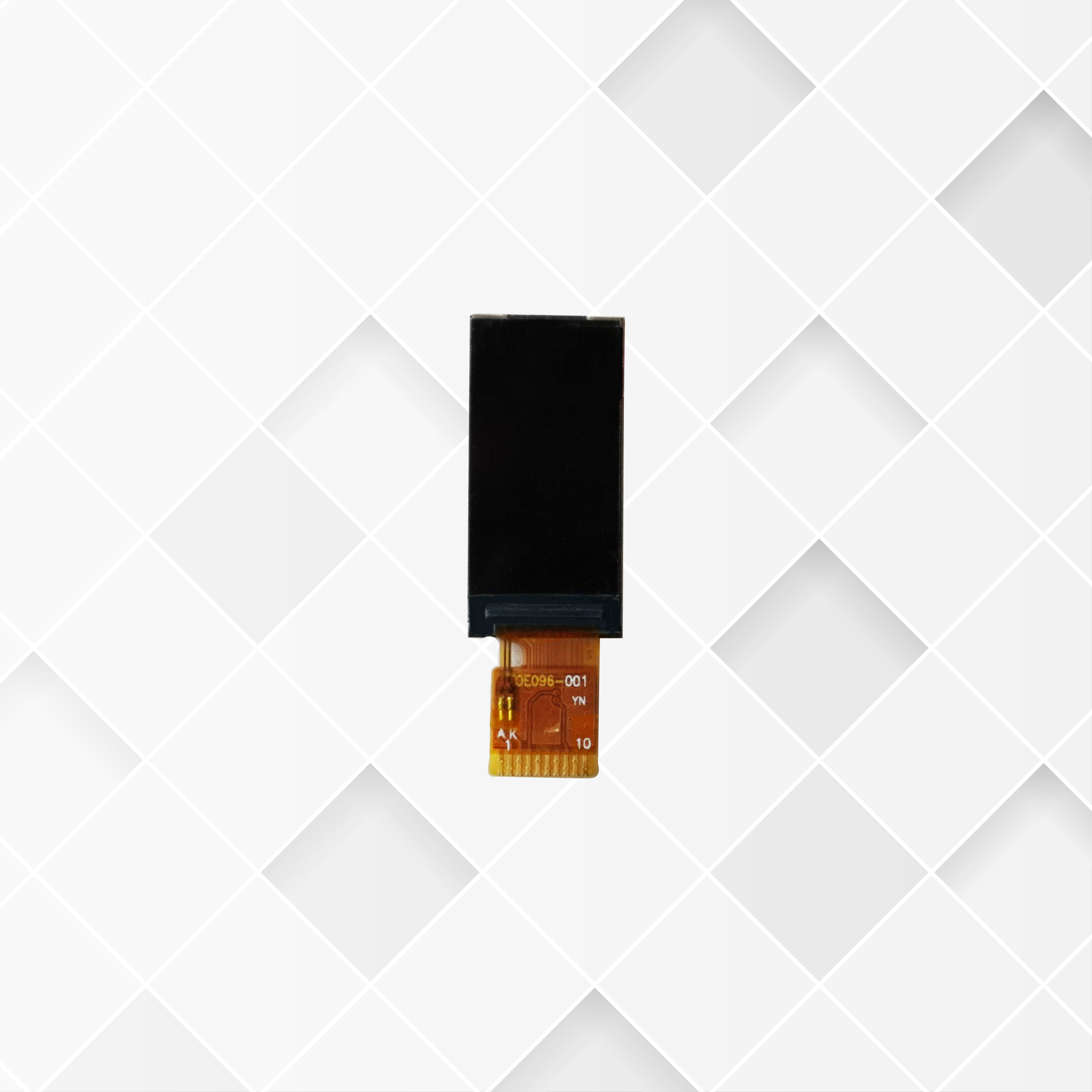

0.9 Inch TFT LCD
0.9 Inch TFT LCD
0.9 Inch TFT LCD
0.9 Inch TFT LCD
0.9 Inch TFT LCD

0.9 Inch TFT LCD

Model NO.
PYS-0980160
Quantity:
ITEMSPECIFICATION
Size0.9 Inch TFT
Viewing Direction6:00 O'Clock
Gray Scale Inversion Direction 12:00 O'Clock
Display Mode Normally White
Module Size (W * H * T)13.24 *28.0 * 1.39 mm
Active Area (W * H)11.52 * 20.16 mm
Numbers of Dots (Pixels)80(RGB) * 160
Driver IC ST7735S
Backlight Type1 LED
Interface TypeSPI
Color Depth 16.7 M
Pixel ArrangementRGB Vertical Stripe
Surface TreatmentAG
Input Voltage2.8V Typical
Storage Temperature-30℃ - 80 ℃
Operating Temperature-20℃ - 70℃
Humidity90% (Max 60℃ ) RH
