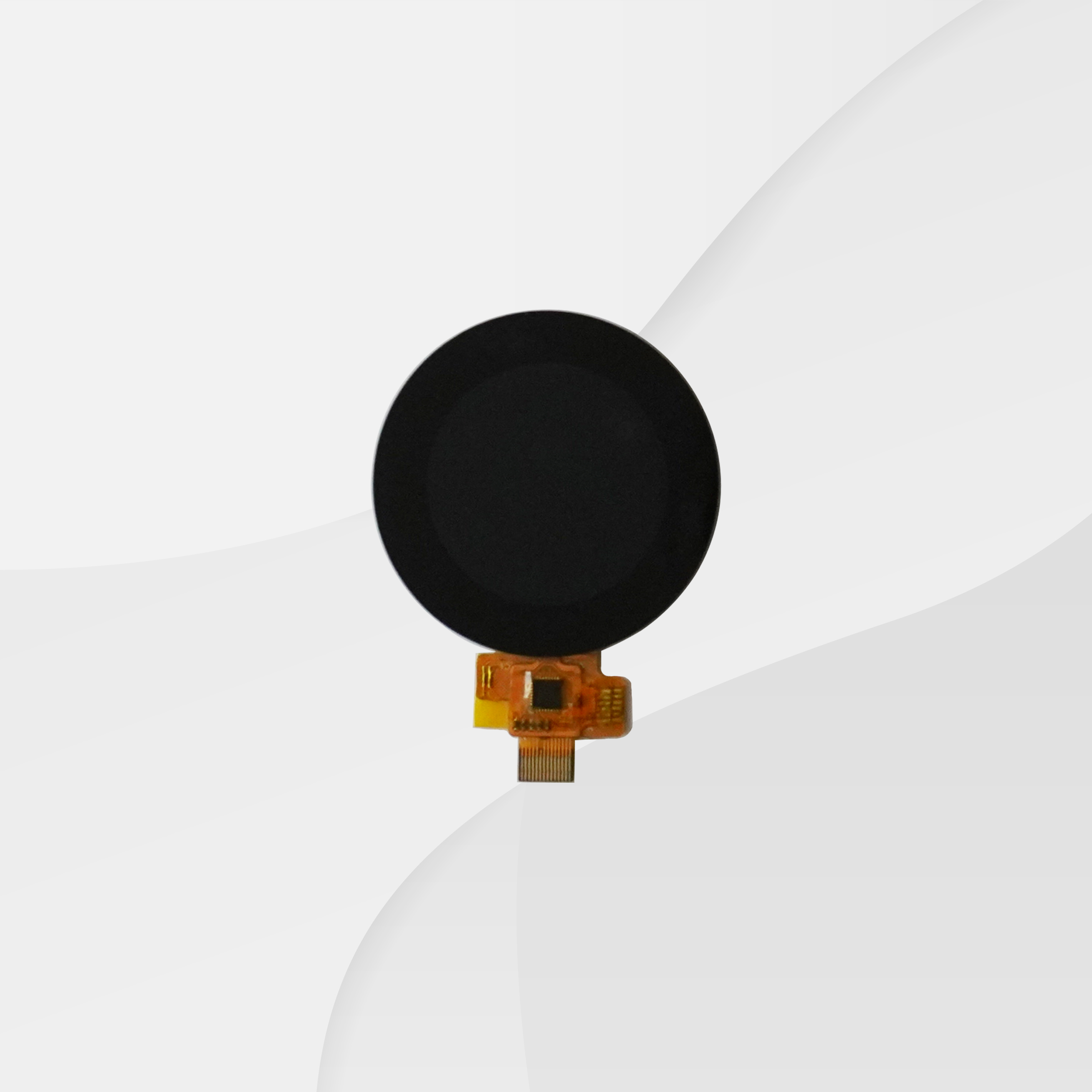

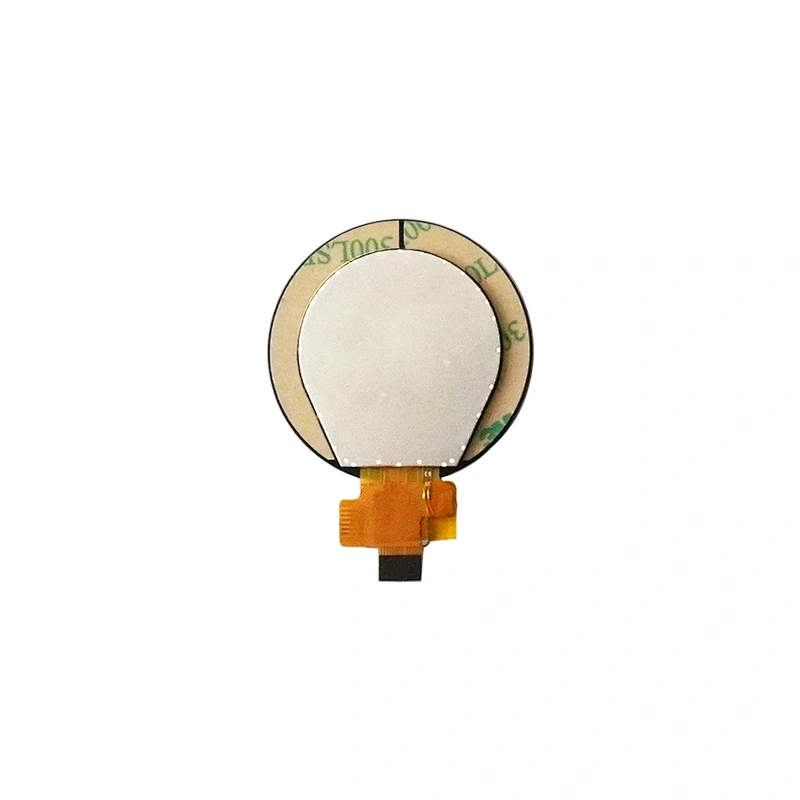

1.3 Inch Round IPS TFT LCD with CTP Touch Panel
1.3 Inch Round IPS TFT LCD with CTP Touch Panel
1.3 Inch Round IPS TFT LCD with CTP Touch Panel
1.3 Inch Round IPS TFT LCD with CTP Touch Panel
1.3 Inch Round IPS TFT LCD with CTP Touch Panel

1.3 Inch Round IPS TFT LCD with CTP Touch Panel

Model NO.
PYS-13R240240CTP-IPS
Quantity:
ITEMSPECIFICATION
Size0.3 Inch Round TFT
Viewing DirectionALL
Display Mode Normally Black
Module Size (W * H * T)46.91 * 46.91 * 2.55mm
Active Area (W * H)32.4 * 32.4mm
Dot Pitch  (W * H)0.129 * 0.29 mm
Numbers of Dots (Pixels)240(RGB) * 240
Driver IC ST7789
Backlight Type2 LEDs
Surface Luminance140cd/m² Typical
Interface TypeSPI
Color Depth 16.7 M
Pixel ArrangementRGB Vertical Stripe
Surface TreatmentAG
Input Voltage2.8 V Typical
Storage Temperature-30℃ - 80 ℃
Operating Temperature-20℃ - 70℃
Humidity90% (Max 60℃ ) RH
