PMS-1040H-002-M is a high-performance embedded integrated human-machine interface based on the industrial-grade Arm Cortex-A5.
The product design uses a 10.4-inch high-brightness LCD liquid crystal display (resolution 1024*768), multi-touch capacitive touch screen.
| ITEM | SPECIFICATION |
| LCD | 10.4 Inch IPS 1024*768 |
| Brightness | 400cd/ m², 800 cd/ m² |
| CPU | Cortex A5 |
| Memory | 500MHz Operating with VFPU, NEON, & TrustZone |
| Touch Screen | 5-points Capacitive Touch |
| Storage Devices | 32KB instruction/Data Caches, 128 KB SRAM, |
| LPDDR/ DDR2/LPDDR2/ DDR3/ LPDDR3/ L and NAND FLASH |
| External Memory Flash/ EMMC Flash Optional |
| SDcard expan. | Max to 64 G |

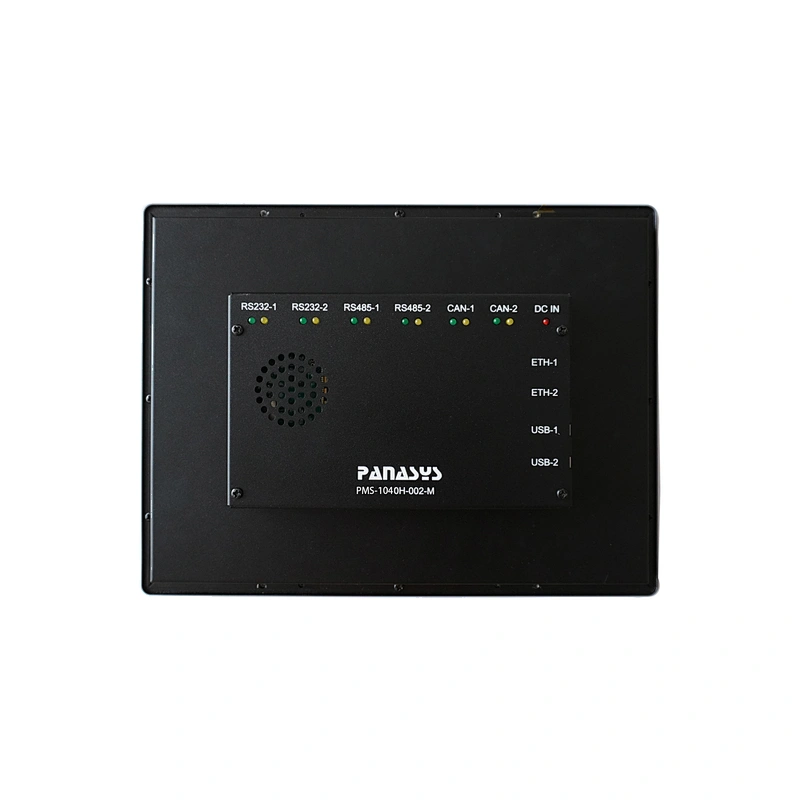

| Interface | 2*RS232, 2*RS485, 2*LAN, 2*Ethernet, 2*USB 2.0 |
| Operating Temp. | -40℃ - 85℃ |
| Protection | IP65 (Front Panel) |
| Input Voltage | 9V-36V |
| Product Size | 285mm (W) * 180mm (H) * 40.4mm (D) |
| Operating size | 220mm * 125mm |
| With / without Touch | With 5 Point Touch |
Related Products
Model NO. PMS-1010H-002-M
Wechat scan code or copy link mobile phone open
X

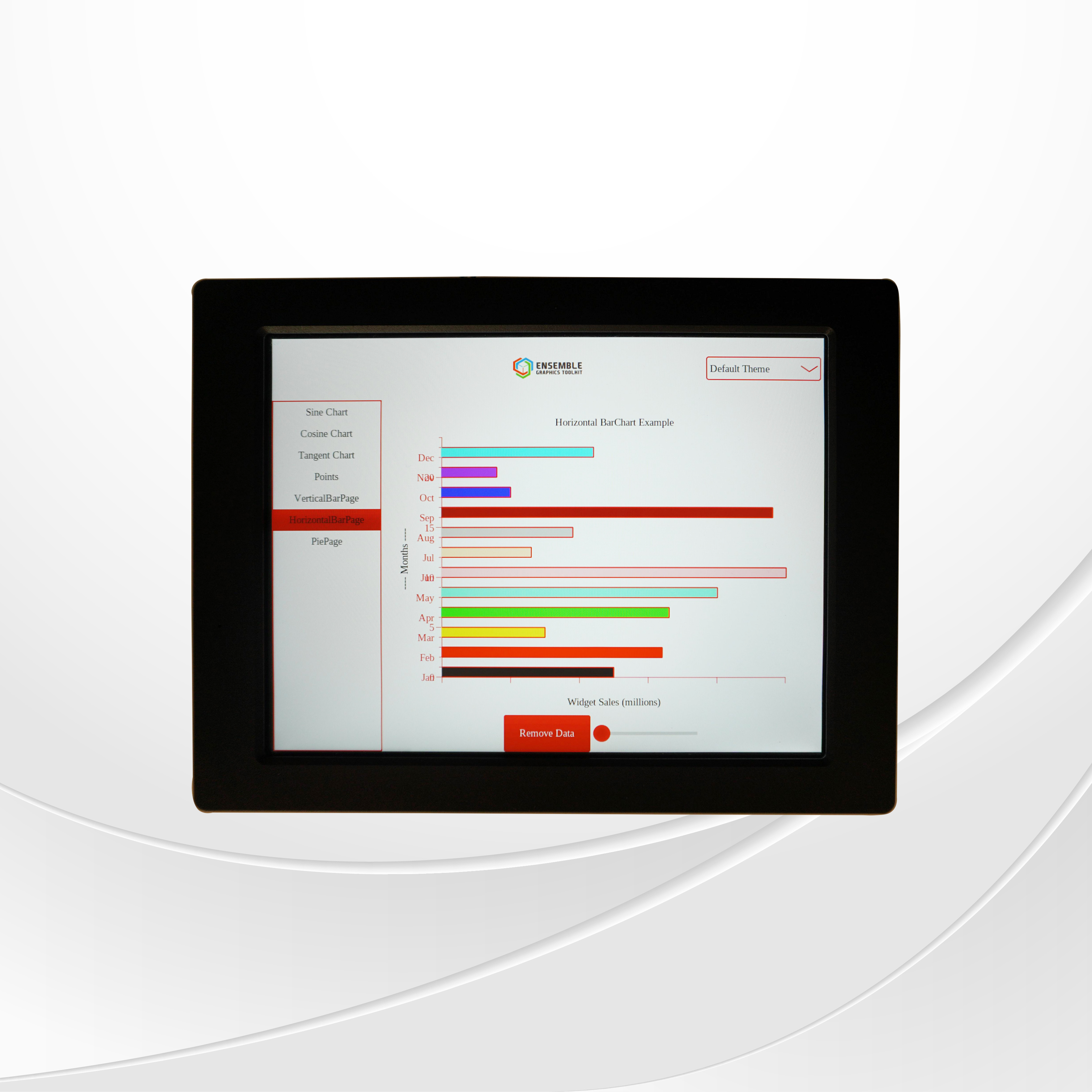

10.4 Inch Embedded with Touch Panel
