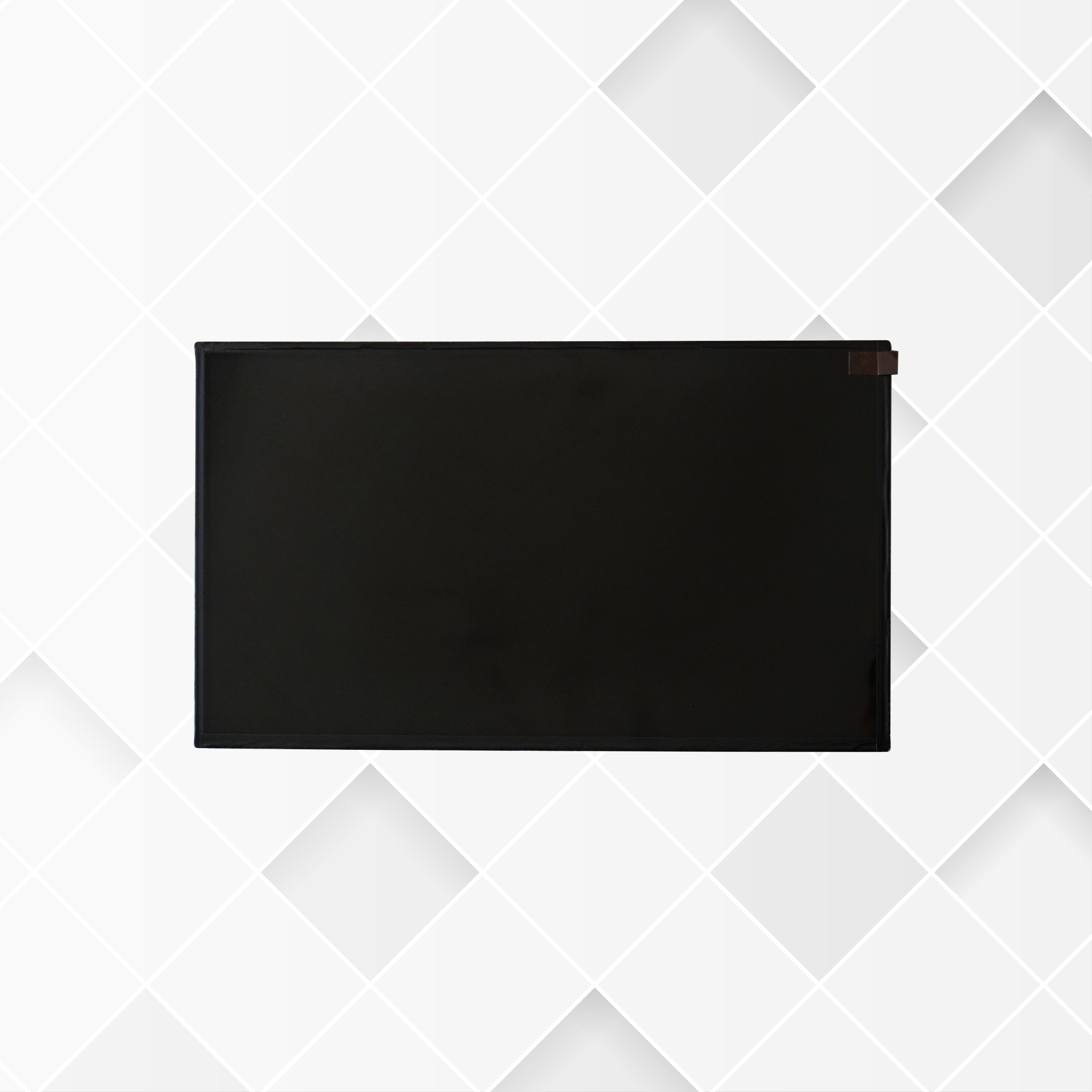

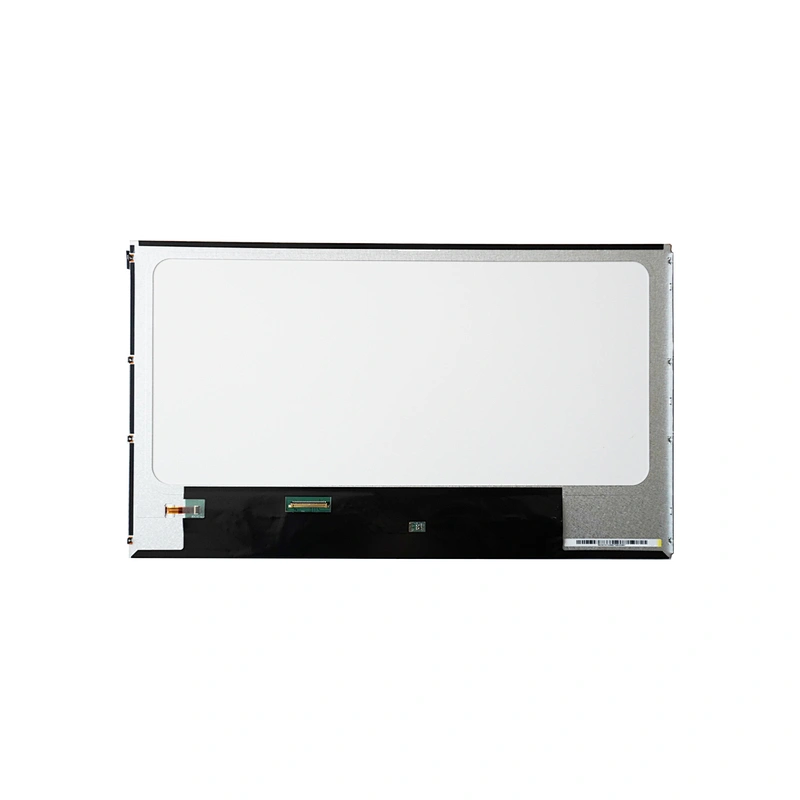

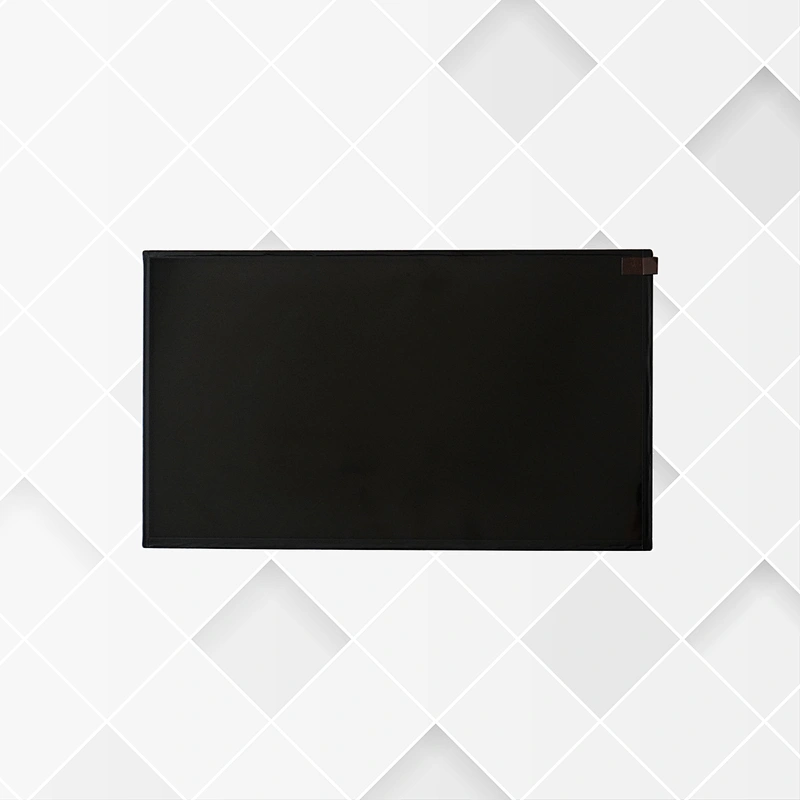

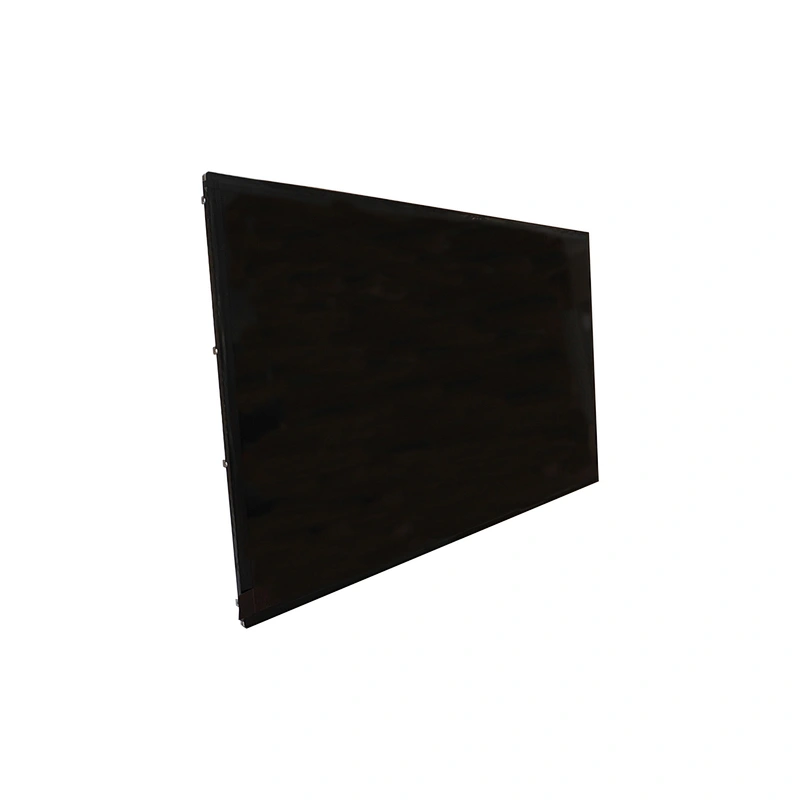

15.6 Inch TN LCD
15.6 Inch TN LCD
15.6 Inch TN LCD
15.6 Inch TN LCD
15.6 Inch TN LCD
15.6 Inch TN LCD
15.6 Inch TN LCD

15.6 Inch TN LCD

Model NO.
PYS-1561366768-TN
Quantity:
ITEMSPECIFICATION
Size15.6 Inch TFT
Viewing Angle 6:00 O'Clock
Module Size (W * H * T)359.3 * 209.5 * 5.2 mm
Active Area (W * H)344.232 * 193.54mm
Dot Pitch  (W * H)0.252 * 0.252 mm
Numbers of Dots (Pixels)1366(RGB) * 768
Backlight Type40 LEDs
Surface Luminance220cd/m² Typical
Interface Type40 Pins LVDS
Pixel ArrangementRGB Vertical Stripe
Surface Treatment HC
Input Voltage3.3V Typical
Storage Temperature-20℃ - 60 ℃
Operating Temperature0℃ - 50℃
Humidity90% (Max 40℃ ) RH
