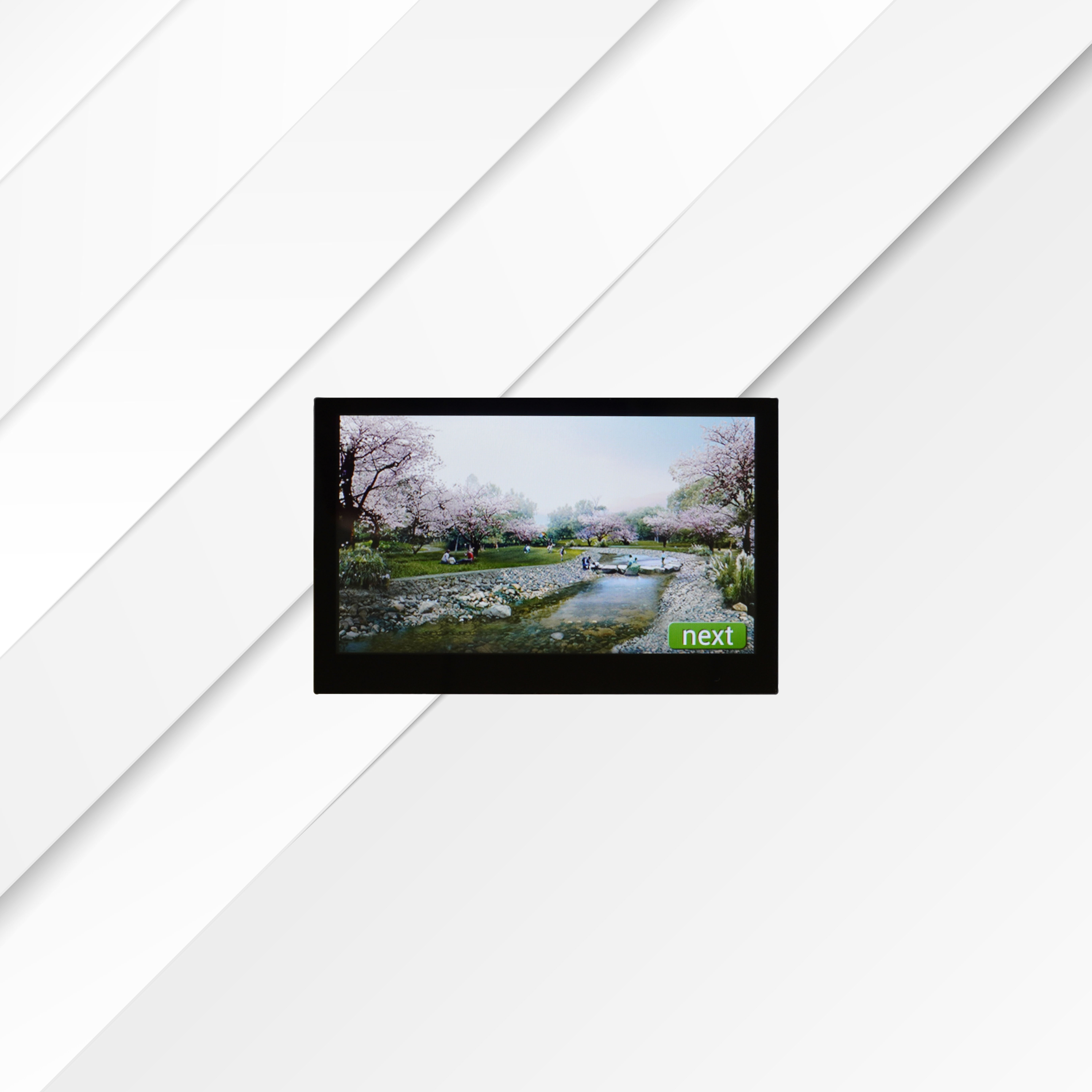

4.3 inch Intelligent Display with BT 801 Driver Chips
4.3 inch Intelligent Display with BT 801 Driver Chips
4.3 inch Intelligent Display with BT 801 Driver Chips
4.3 inch Intelligent Display with BT 801 Driver Chips
4.3 inch Intelligent Display with BT 801 Driver Chips

4.3 inch Intelligent Display with BT 801 Driver Chips

Model NO.
PYS-43M5-CTP
Quantity:

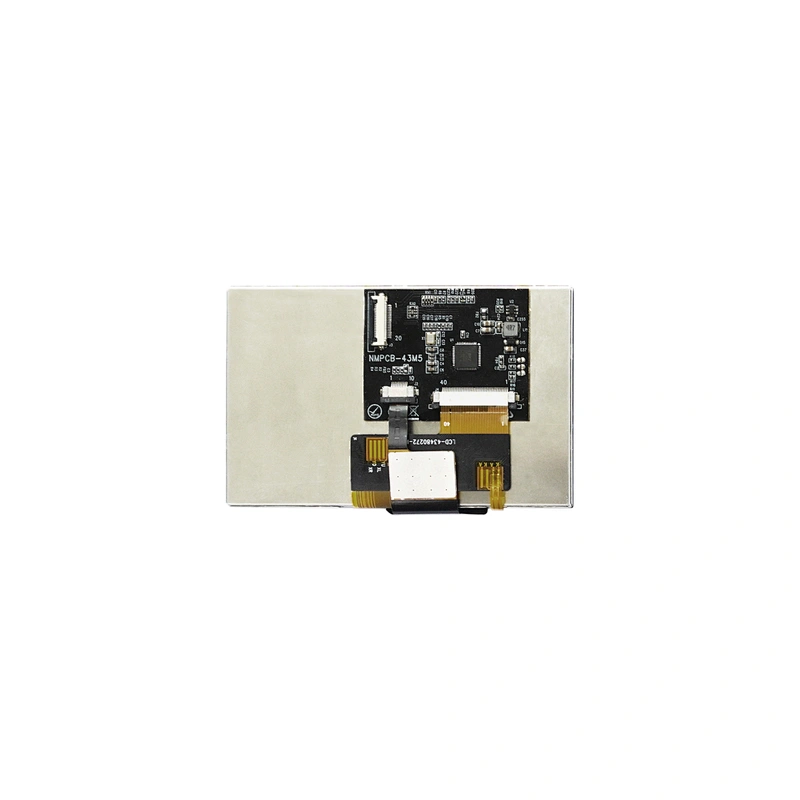

This type is a 4.3 Inch Intelligent display with capacitive touch, it is composed of a colour TFT-LCD panel, driver IC, FPC and a back light unit with a Capacitive Touch Panel with a FT801 controller.

 The module display area contains 480 x 272 pixels.

This product accords with RoHS environmental criterion.

ITEMSPECIFICATION
Size4.3”TFT/Transmissive
LCD TypeNormally White
Viewing DirectionAll
Module Size (W * H * T)105.5 * 67.2 * 4.2 mm
Active Area (W * H)95.04 * 53.856 mm
Numbers of Dots (Pixels)480(RGB) * 272
Driver IC BT815
Backlight Type10 LEDs
Surface Luminance500 cd/m² Typical
Input Voltage2.8-3.3 V Typical
With/ without Touch PanelWith CTP
Storage Temperature-20℃ - 70 ℃
Operating Temperature-10℃ - 60℃
Humidity90% (Max 60℃ ) RH
