4.3 inch Intelligent Display with Driver Chips FT 800

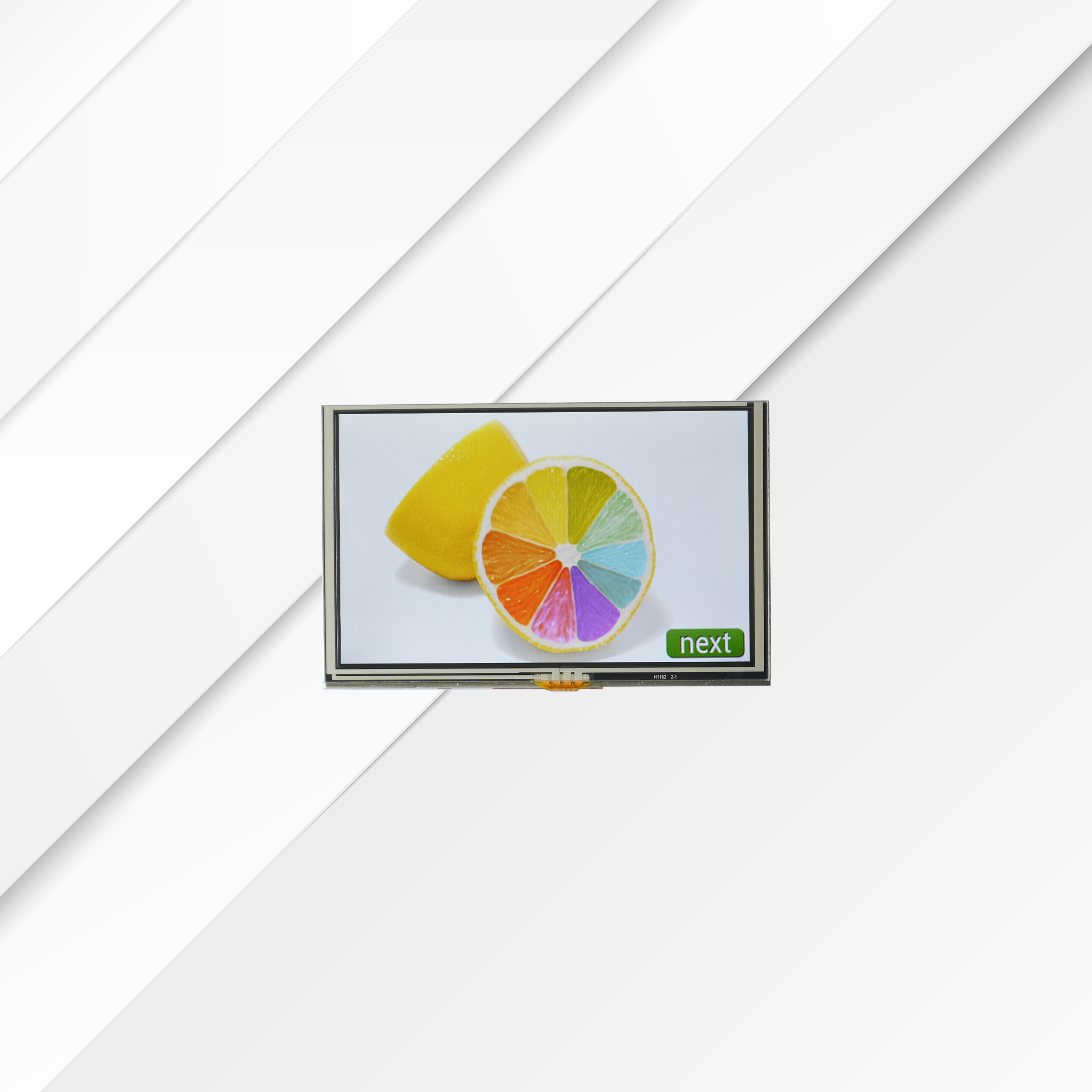

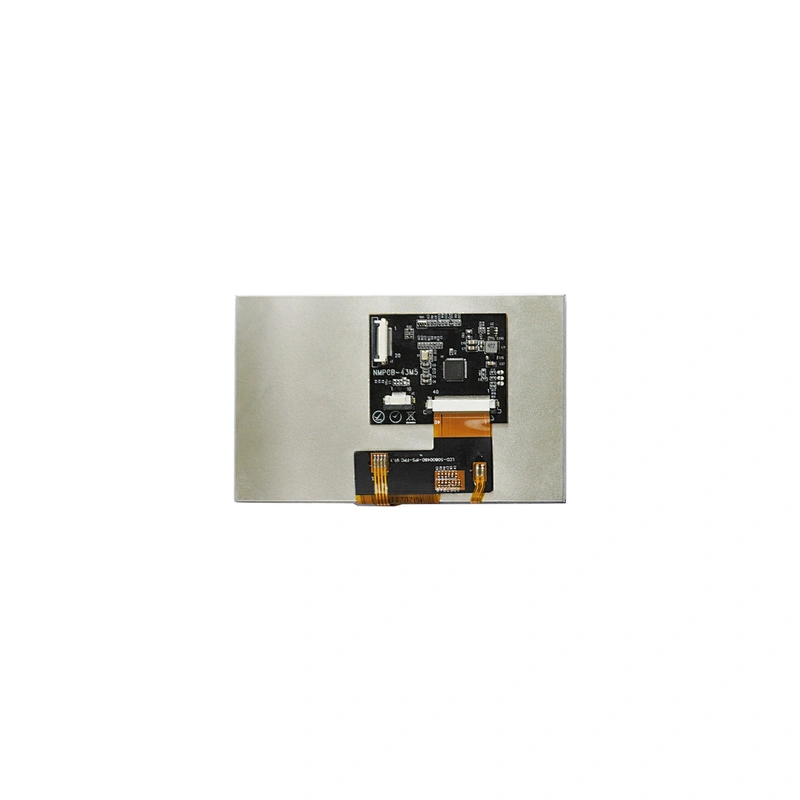

4.3 inch Intelligent Display with Driver Chips FT 800

Model NO.: PYS-43M5-RTP

Quantity:

Product Description

This type is a 4.3 Inch Intelligent display with resistive touch, it is composed of a colour TFT-LCD panel, driver IC, FPC and a back light unit with a Resistive Touch Panel with a FT800 controller.

The module display area contains 480 x 272 pixels.

This product accords with RoHS environmental criterion.

ITEM	SPECIFICATION
Size	4.3”TFT/Transmissive
Viewing Direction	All
Module Size (W * H * T)	105.5 * 67.2 * 4.2 mm
Active Area (W * H)	95.04 * 53.856 mm
Numbers of Dots (Pixels)	480(RGB) * 272
Driver IC	BT800
Backlight Type	10 LEDs
Surface Luminance	500 cd/m² Typical
With/ without Touch Panel	With RTP
Storage Temperature	-20℃ - 70 ℃
Operating Temperature	-10℃ - 60℃
Humidity	90% (Max 60℃ ) RH
