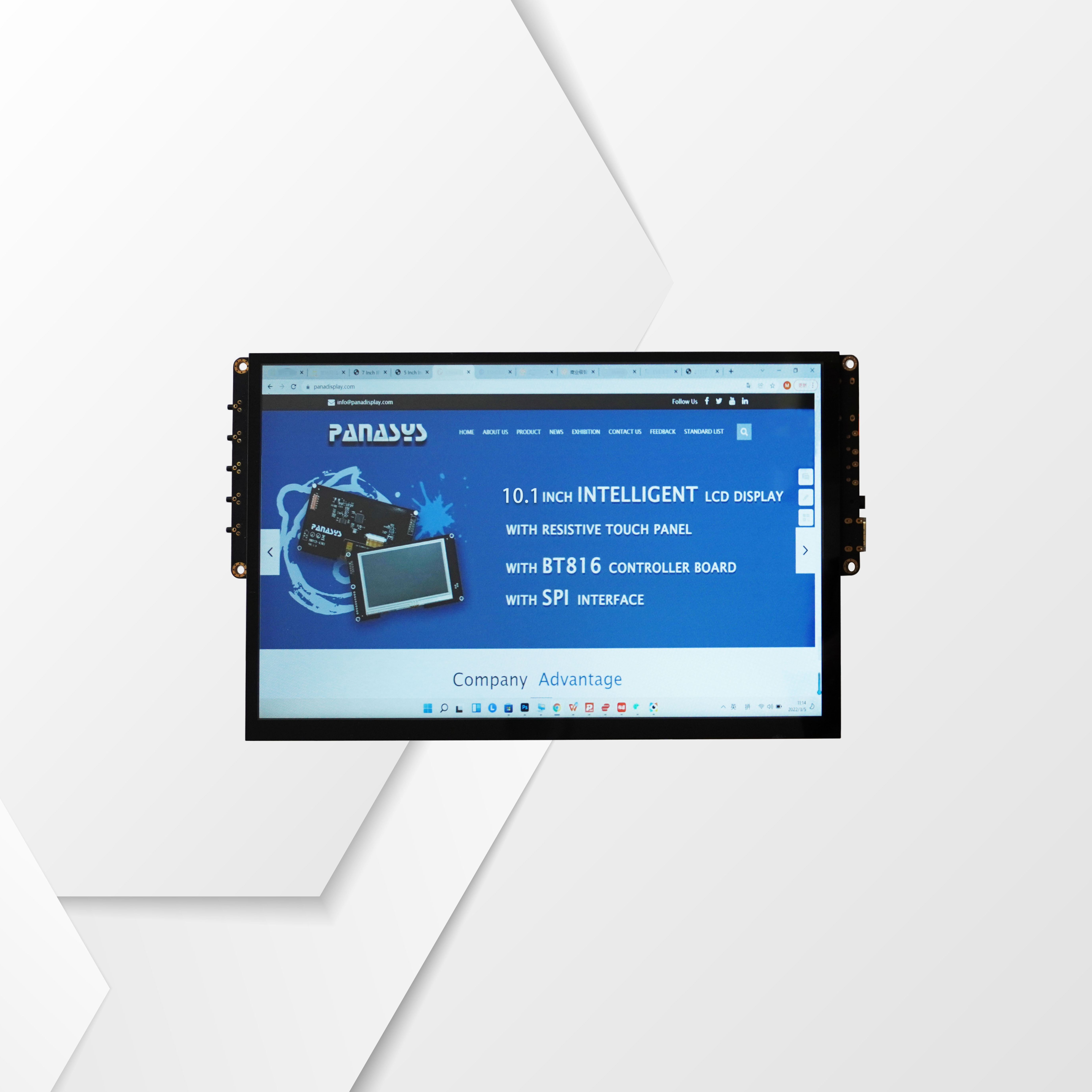

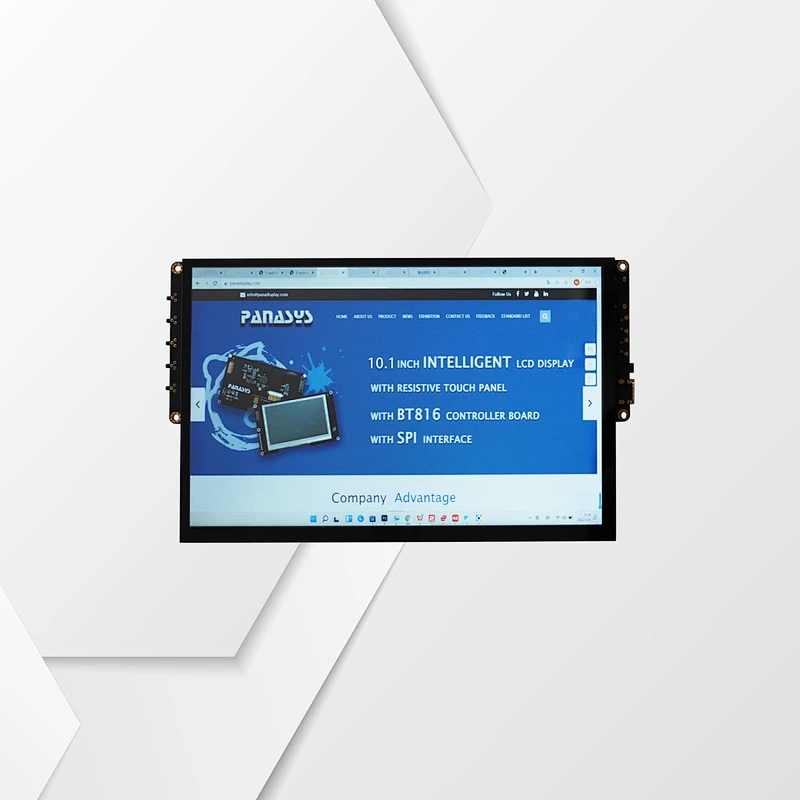

10.1 Inch IPS Display with HDMI Interface
10.1 Inch IPS Display with HDMI Interface
10.1 Inch IPS Display with HDMI Interface
10.1 Inch IPS Display with HDMI Interface
10.1 Inch IPS Display with HDMI Interface

10.1 Inch IPS Display with HDMI Interface

Model NO.
PSHDMI-101WX-C-IPS
Quantity:

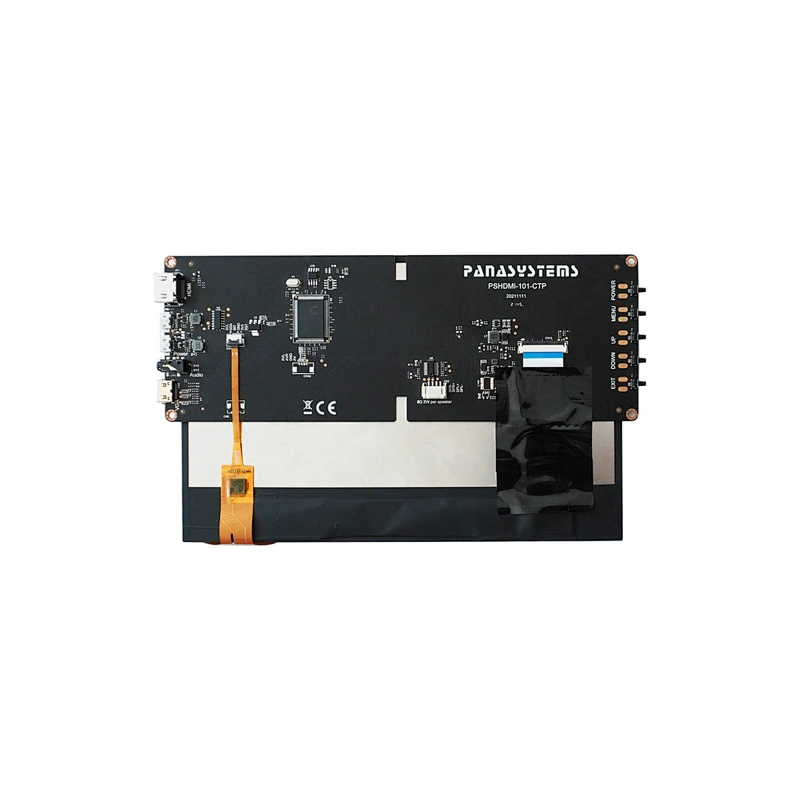

PSHDMI-101WX-C-IPS is a 10.1 inch IPS Type TFT LCD with HDMI Interface Adapter Board, with or without capacitive touch panel and luminance optional, support 1280*800 resolution.

This product accords with RoHS.


ITEMSPECIFICATION
Size10.1Inch TFT/Transmissive
Viewing DirectionALL
Display Mode Normally Black
Module Size (W * H * T)229.46 *  149.1 mm
Active Area (W * H)216.96 * 135.6 mm
Dot Pitch  (W * H)0.0565 * 0.1695 mm
Numbers of Dots (Pixels)1280(RGB) * 800
Driver IC of BoardRTD2660H
Surface Luminance450cd/m² Typical
Interface TypeHDMI
Color Depth 16.7 M
Pixel ArrangementRGB Vertical Stripe
Input VoltageMicro Type USB 5V
With/ Without TP5 point touch CTP
Storage Temperature-30℃ - 80 ℃
Operating Temperature-20℃ - 70℃
Humidity90% (Max 60℃ ) RH

Send Message

* clear input
*

Related Products

4.3 Inch IPS Display with HDMI Interface
4.3 Inch IPS Display with HDMI Interface
Model NO. PSHDMI-043WQ-C-IPS
5 Inch Inch IPS Display with HDMI Interface
5 Inch Inch IPS Display with HDMI Interface
Model NO. PSHDMI-050W-C-IPS

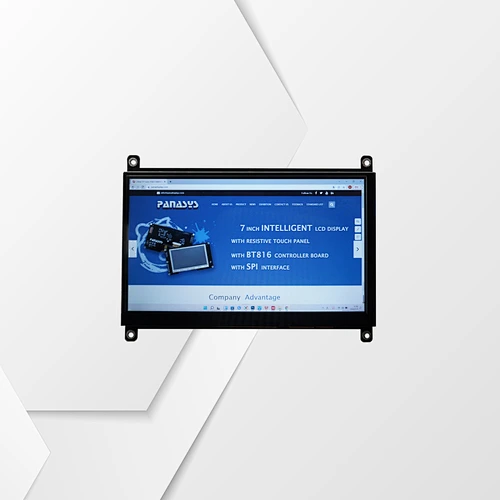

7 Inch IPS Display with HDMI Interface
