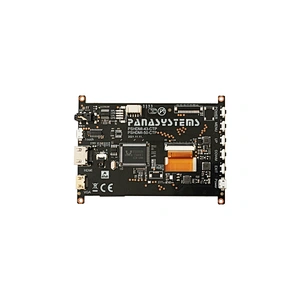

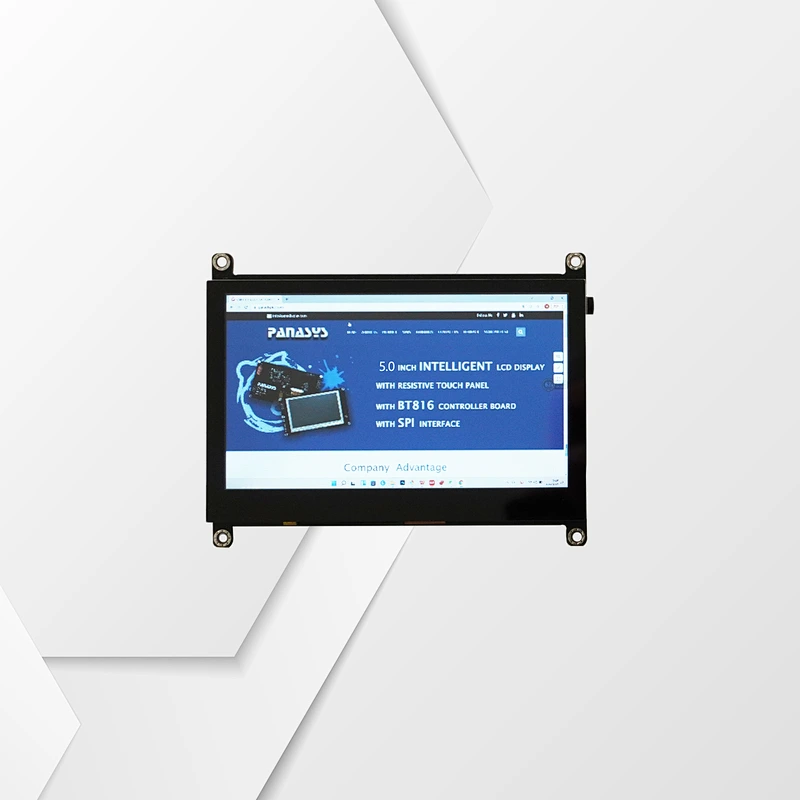

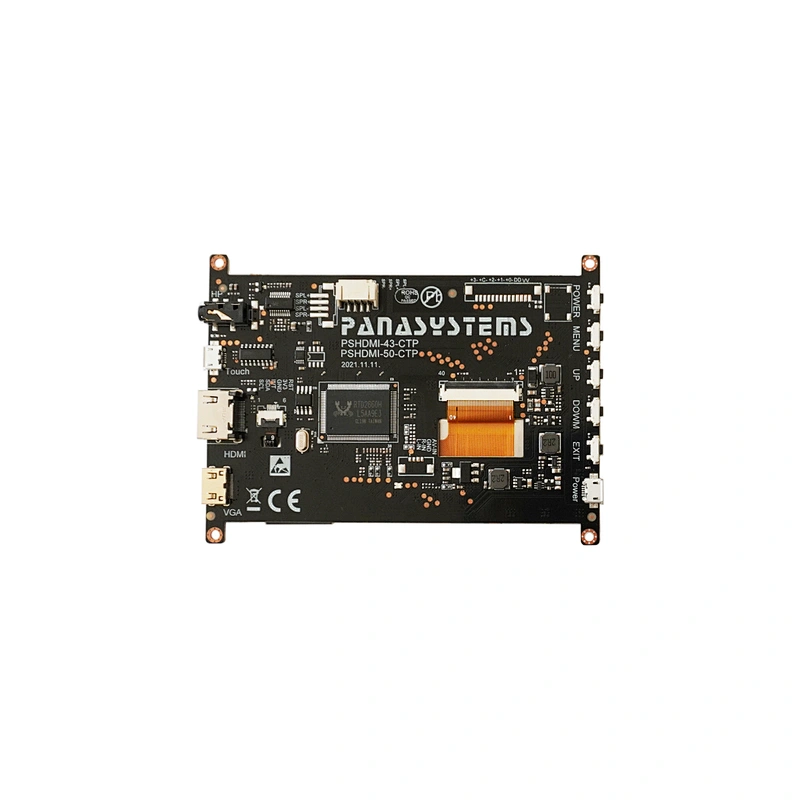

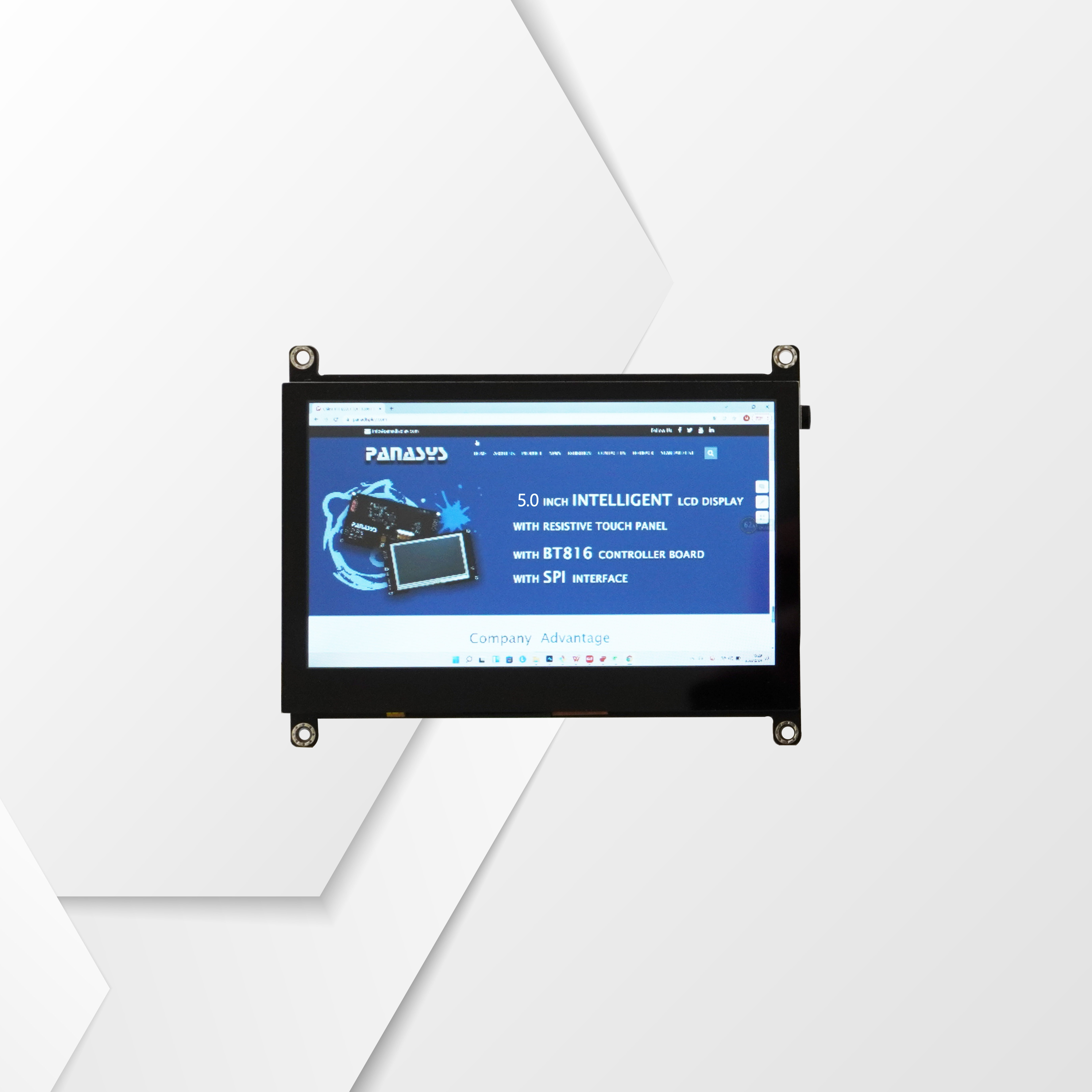

PSHDMI-050W-C-IPS is an HDMI Display composed of a 5'' IPS TFT display with Capacitive Touch Panel and an integrated HDMI Board.
It supports plug and play HDMI Interface compatible with PC and SBC, plug and play USB-C Interface for touch control.
| ITEM | SPECIFICATION |
| Size | 5 Inch TFT/Transmissive |
| Display Mode | Normally Black |
| Viewing Direction | ALL |
| Module Size (W * H * T) | 120.7 * 75.8 * 3.05 mm |
| Active Area (W * H) | 108 * 65.8mm |
| Dot Pitch (W * H) | 0.135 * 0.135 mm |
| Numbers of Dots (Pixels) | 800(RGB) * 480 |
| Pixel Arrangement | RGB Vertical Stripe |
| Driver IC | ST7262A |
| Driver IC of Board | RTD2660H |
| Surface Luminance | 450cd/m² Typical |
| Interface Type | HDMI |
| Pixel Arrangement | RGB Vertical Stripe |
| Supply Voltage | Micro type USB 5V |
| With/without TP | 5 Point Touch |
| Storage Temperature | -30 to 70℃ |
| Operating Temperature | -20 to 80 ℃ |
| Humidity | 90%(Max60°C) RH |
