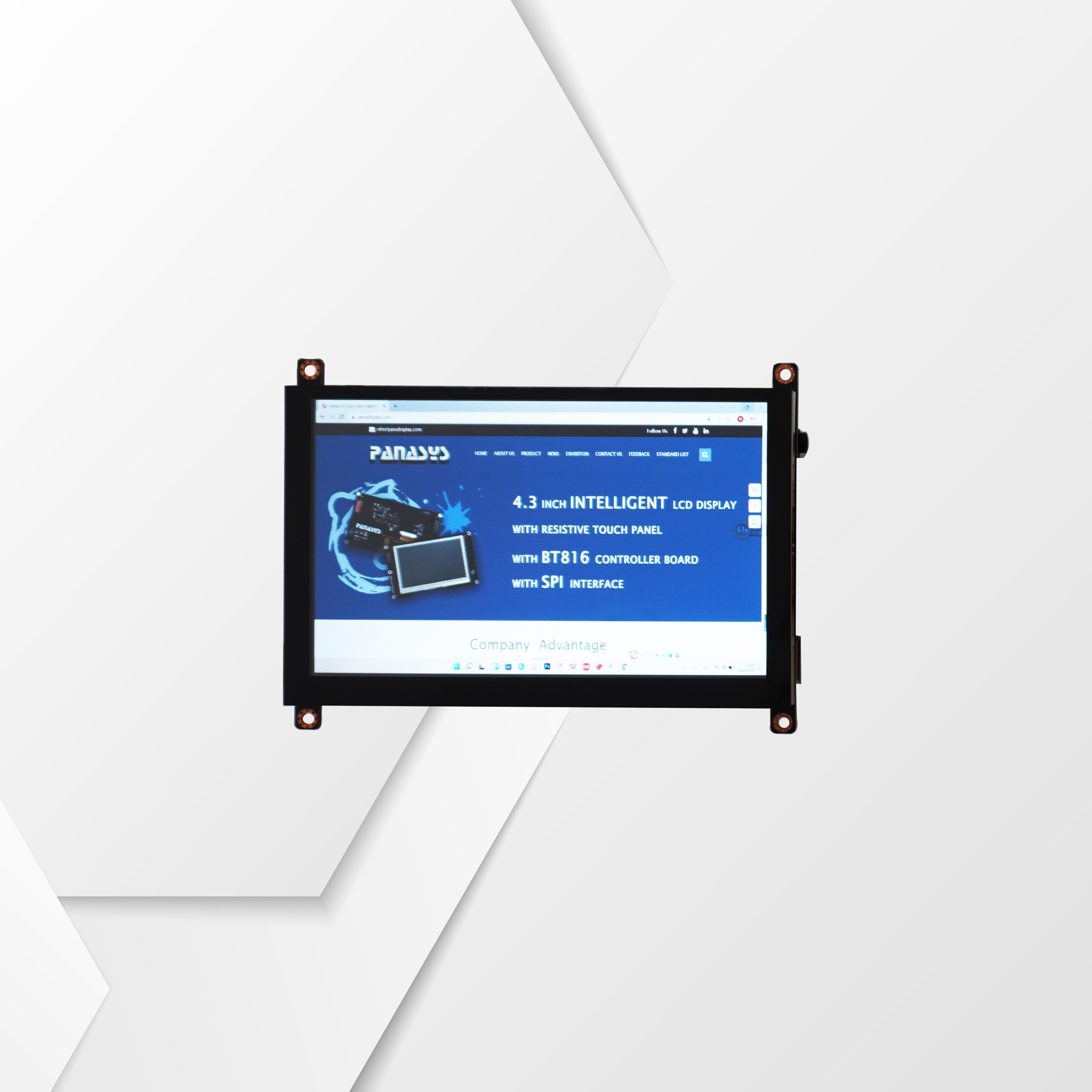

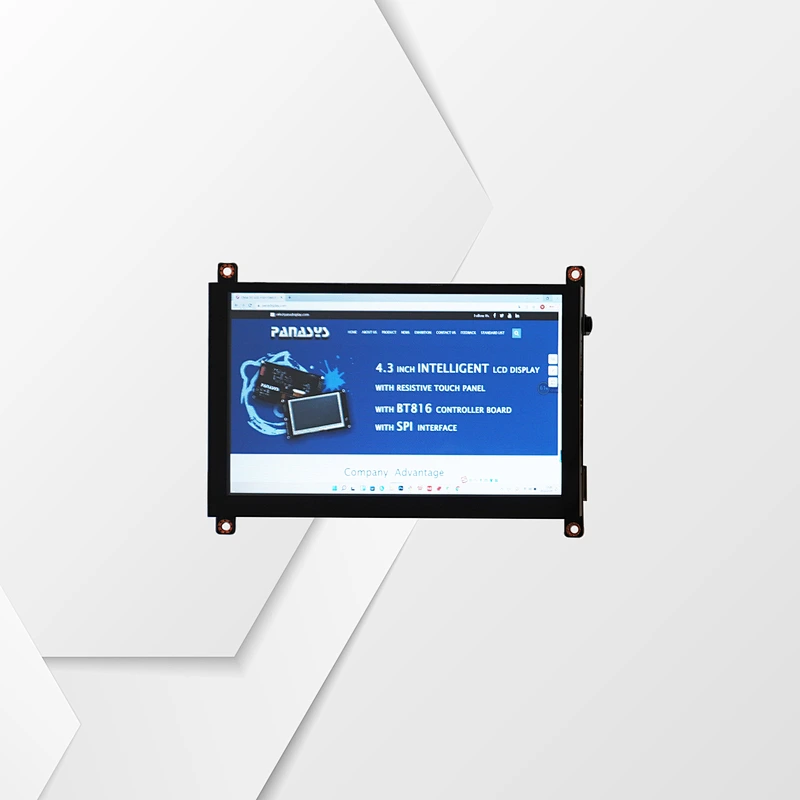

4.3 Inch IPS Display with HDMI Interface

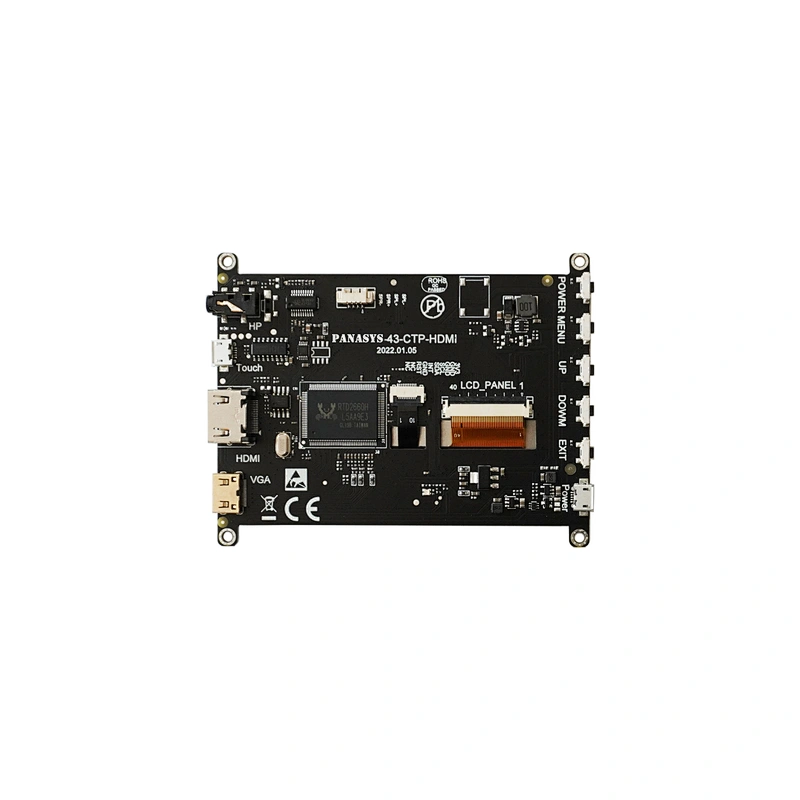

PSHDMI-043WQ-C-IPS is an HDMI Display composed of a 4.3 IPS TFT display with Capacitive Touch Panel and an integrated HDMI Board.

It supports plug and play HDMI Interface compatible with PC and SBC, plug and play USB-C Interface for touch control.


ITEM	SPECIFICATION
Size	4.3 Inch TFT/Transmissive
Display Mode	Normally Black
Viewing Direction	ALL
Module Size (W * H * T)	105.5 * 67.2 * 3.0  mm
Active Area (W * H)	95.04 * 53.586mm
Dot Pitch  (W * H)	0.198 * 0.198 mm
Numbers of Dots (Pixels)	480(RGB) * 272
Pixel Arrangement	RGB Vertical Stripe
Driver IC	SC7283
Driver IC of Board	RTD2660H
Surface Luminance	450cd/m² Typical
Interface Type	HDMI
Pixel Arrangement	RGB Vertical Stripe
Supply Voltage	Micro type USB 5V
Storage Temperature	-30℃ - 80 ℃
Operating Temperature	-20 - 70 ℃
With/without TP	5 Point Touch
