PYSCTP-19201080-C is a color active matrix liquid crystal display with a light emitting diode (LED) backlight assembly with LED driver , Capacitive Touch Panel (CTP) and with a Cover Lens Bezel (CLB).
The matrix employs a-Si thin film transistor as the active element. This module is a diagonal 15.6” color active matrix LCD module with 2ch-LVDS interface, which open cell is a transmissive type display operating in the normally black mode.
It supports 1920 * 1080 FHD resolution and can display up to 16.7M colors (8bit). Each pixel is divided into Red, Green and Blue sub-pixels which are arranged in vertical stripe.
This product accords with RoHS environmental criterion.
PYSCTP-19201080-C is a color active matrix liquid crystal display with a light emitting diode (LED) backlight assembly with LED driver , Capacitive Touch Panel (CTP) and with a Cover Lens Bezel (CLB).
The matrix employs a-Si thin film transistor as the active element. This module is a diagonal 15.6” color active matrix LCD module with 2ch-LVDS interface, which open cell is a transmissive type display operating in the normally black mode.
It supports 1920 * 1080 FHD resolution and can display up to 16.7M colors (8bit). Each pixel is divided into Red, Green and Blue sub-pixels which are arranged in vertical stripe.
This product accords with RoHS environmental criterion

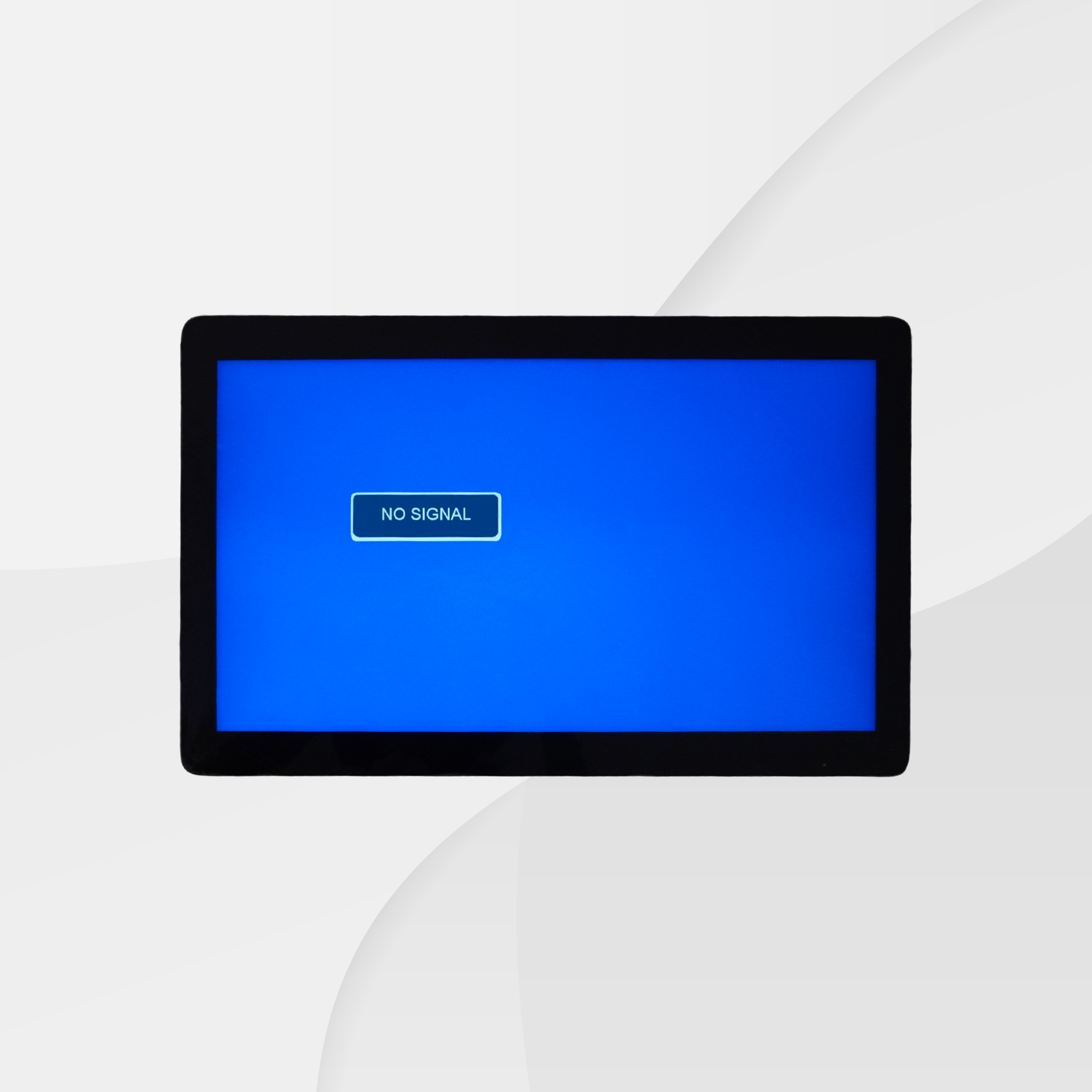

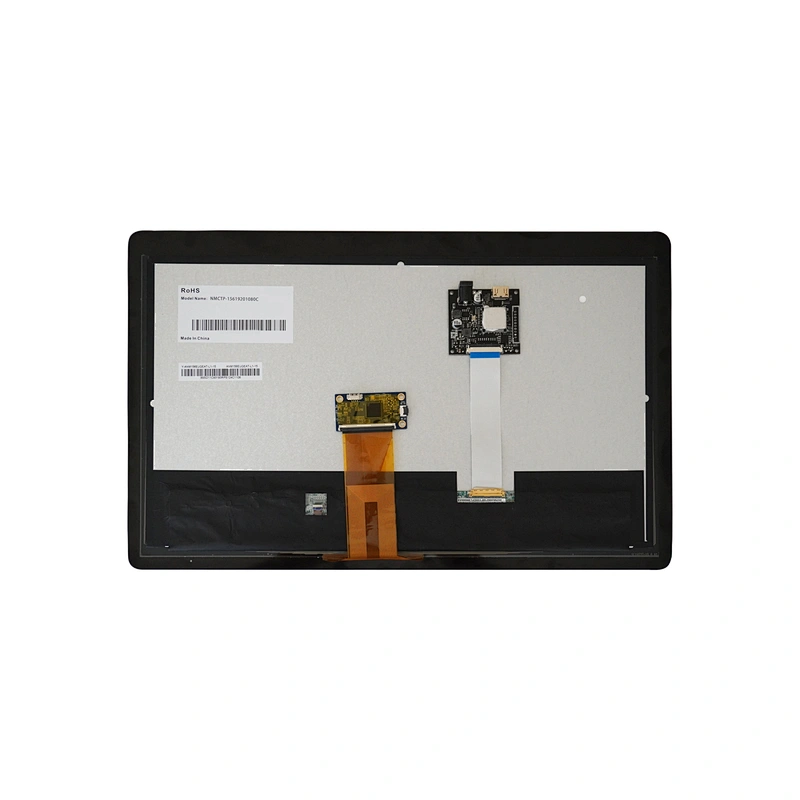

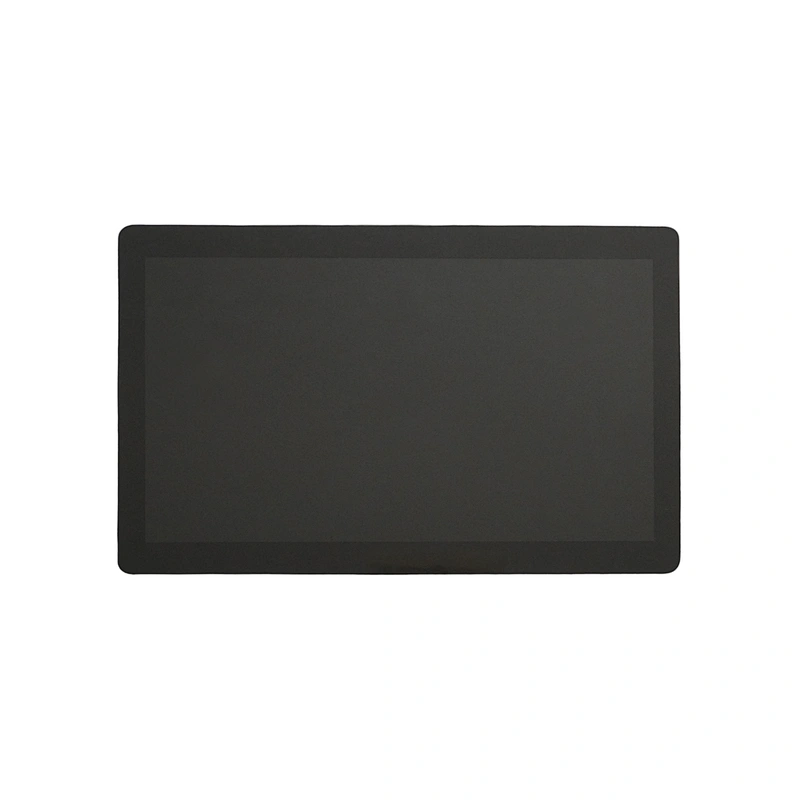

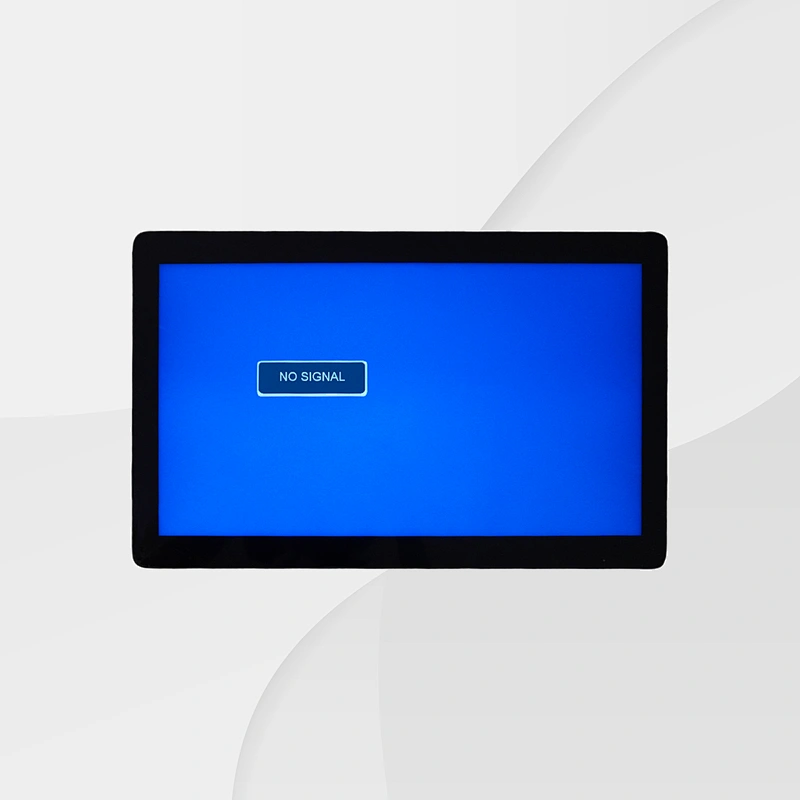

15.6 inch TFT with Capacitive Touch Panel
PYSCTP-19201080C
0.00~0.00
PYSCTP-19201080-C is a color active matrix liquid crystal display with a light emitting diode (LED) backlight assembly with LED driver , Capacitive Touch Panel (CTP) and with a Cover Lens Bezel (CLB).
The matrix employs a-Si thin film transistor as the active element. This module is a diagonal 15.6” color active matrix LCD module with 2ch-LVDS interface, which open cell is a transmissive type display operating in the normally black mode.
It supports 1920 * 1080 FHD resolution and can display up to 16.7M colors (8bit). Each pixel is divided into Red, Green and Blue sub-pixels which are arranged in vertical stripe.
This product accords with RoHS environmental criterion
