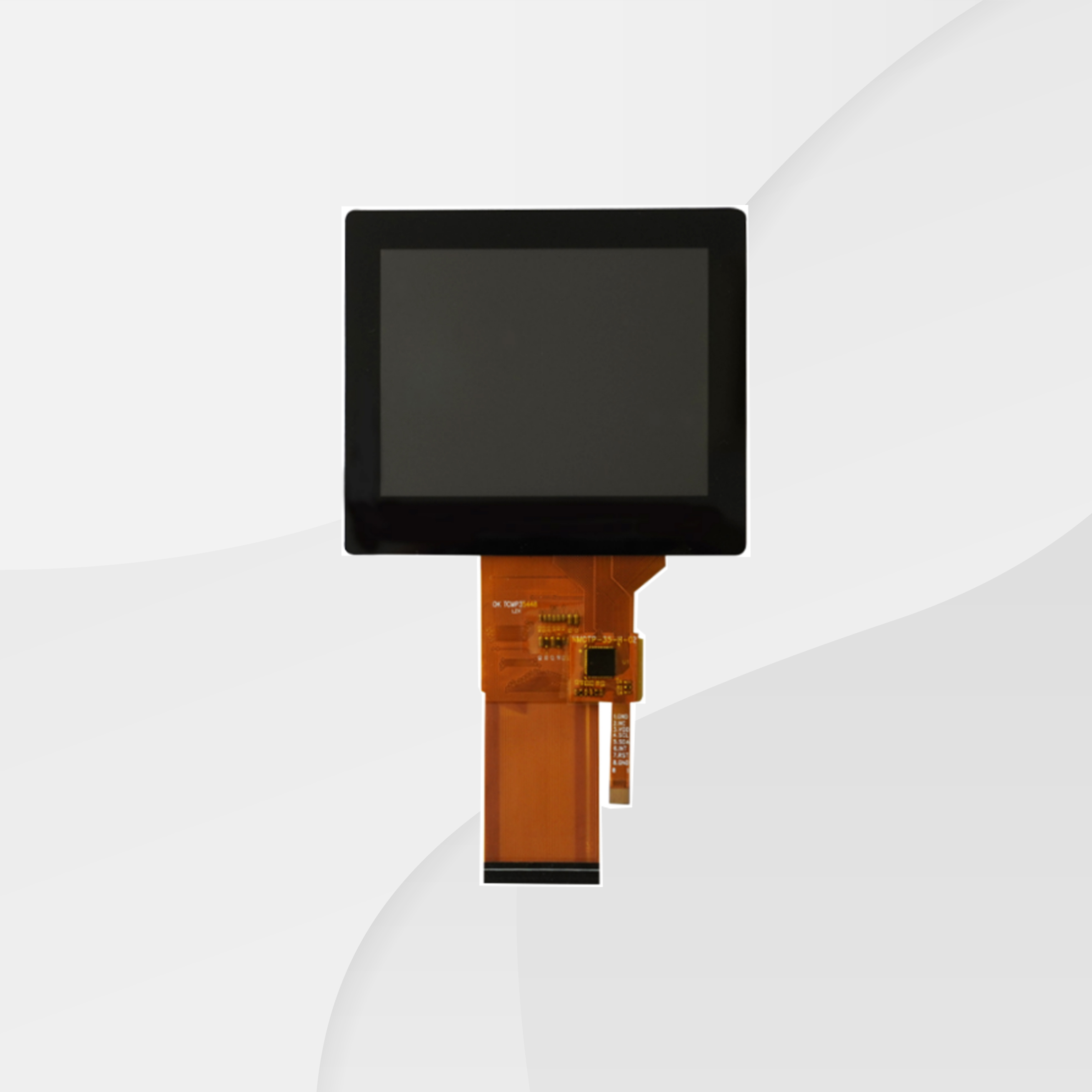

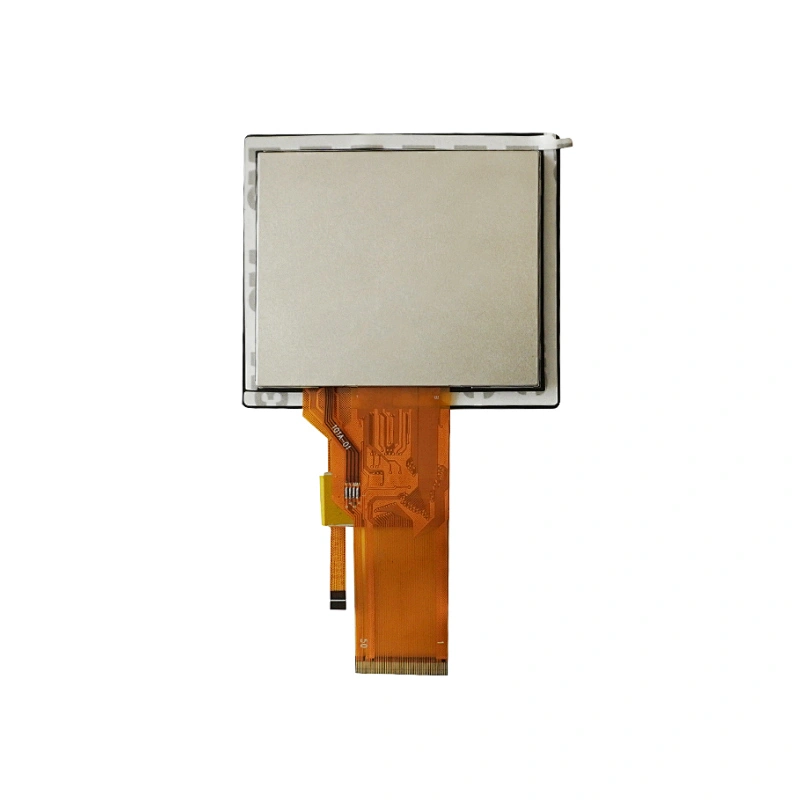

3.5 Inch LCD with CTP
3.5 Inch LCD with CTP
3.5 Inch LCD with CTP
3.5 Inch LCD with CTP
3.5 Inch LCD with CTP

3.5 Inch LCD with CTP

Model NO.
PYS-35320240-CTP-GP
Quantity:
ITEMSPECIFICATION
Size3.5 Inch
Display ModeT/N Normally White
Viewing Direction12:00 O’Clock
Outline Demension (W * H)76.84 * 63.84 mm
Active Area (W * H)70.08 * 52.56 mm
Drive IC HX8238D
Backlight Type6 LEDs
Interface Type16 Bit / 18Bit / 24 Bit-RGB
Color Depth 16.7 M
Input Voltage3.3V Typical
Storage Temperature-30℃ - 80 ℃
Operating Temperature-20℃ - 70℃
Humidity90% (Max 60℃ ) RH
