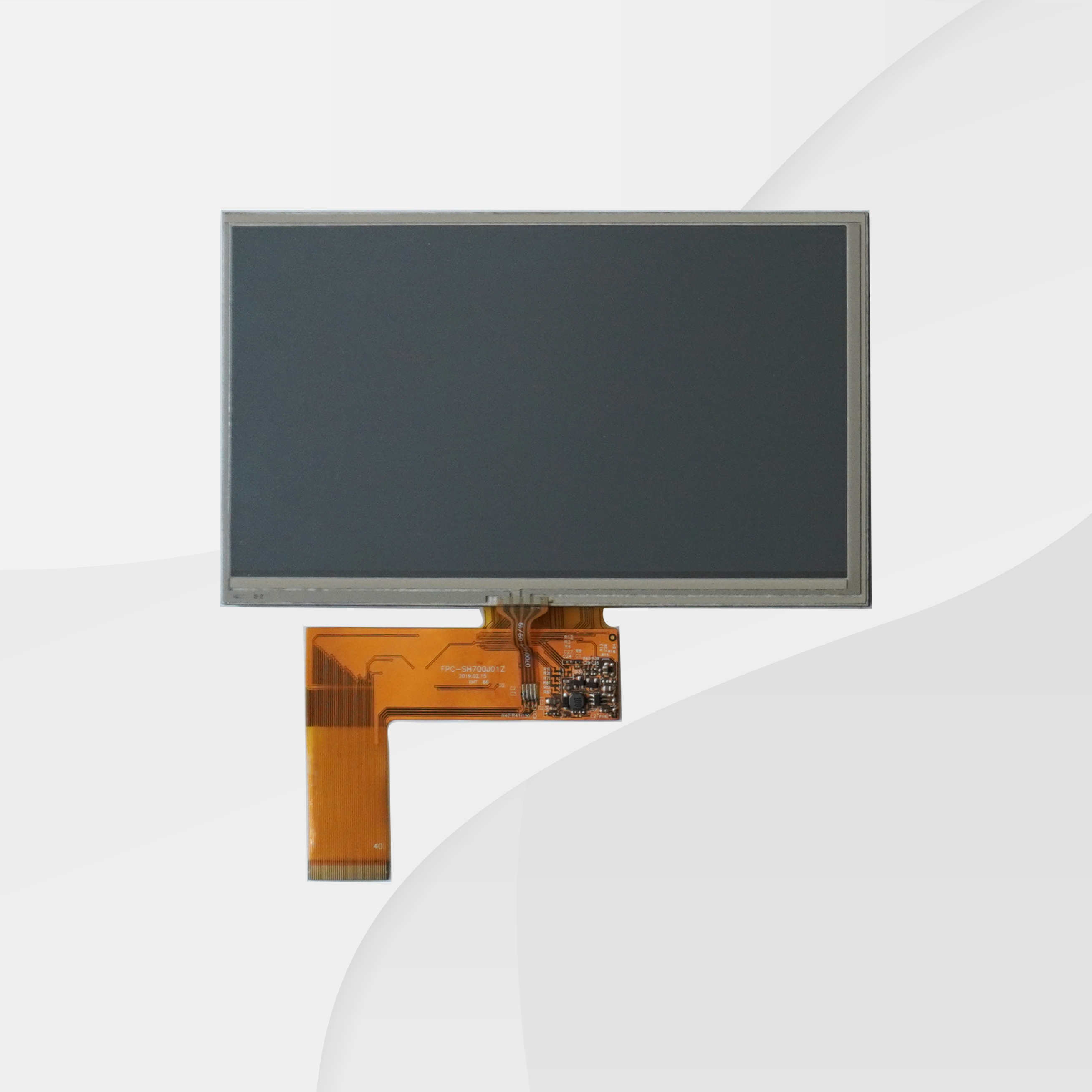

7 Inch IPS LCD with RTP Touch Panel
7 Inch IPS LCD with RTP Touch Panel
7 Inch IPS LCD with RTP Touch Panel
7 Inch IPS LCD with RTP Touch Panel
7 Inch IPS LCD with RTP Touch Panel

7 Inch IPS LCD with RTP Touch Panel

Model NO.
PYS-70800480-IPS-RTP
Quantity:
ITEMSPECIFICATION
Size7 Inch TFT with RTP
Viewing DirectionAll
Display Mode Normally Black
Module Size (W * H * T)165.4 * 104.59 * 4.5mm
Active Area (W * H)152.4 * 91.44 mm
Dot Pitch  (W * H)0.0635 * 0.1905 mm
Numbers of Dots (Pixels)800(RGB) * 480
Driver IC Source: HX8249
Gate: HX8678
Backlight Type27 LEDs
Surface Luminance1000cd/m² Typical
Interface TypeRGB Vertical Stripe
Color Depth 16.7 M
Pixel ArrangementRGB Vertical Stripe
Input Voltage3.3V Typical
Storage Temperature-30℃ - 80 ℃
Operating Temperature-20℃ - 70℃
Humidity90% (Max 60℃ ) RH
