PYS-43480272-CTP-IPS is a 4.3 inch IPS type TFT LCD with a Capacitive Touch Panel which is 1:1 scale with the LCD module, with 480*272 resolution.

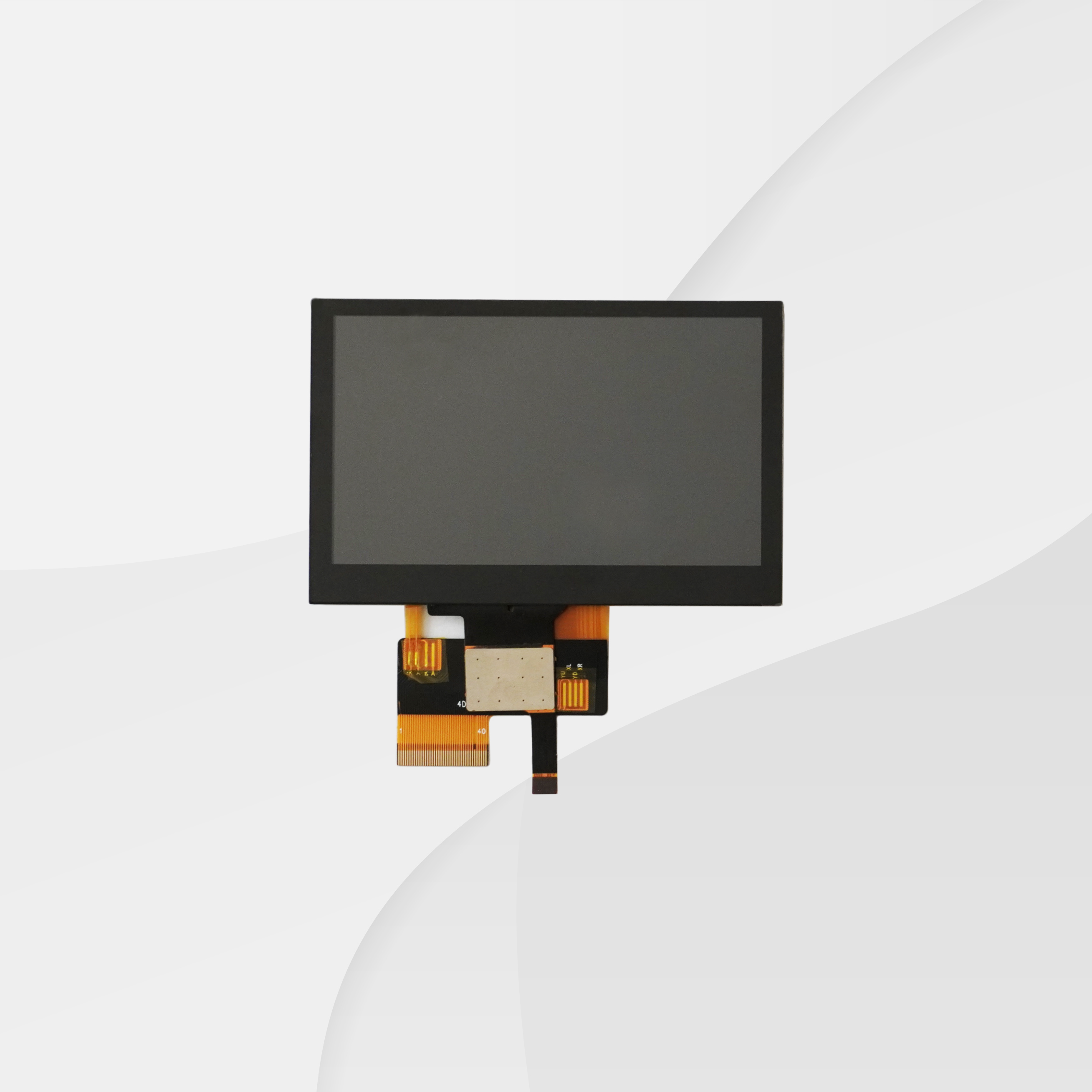

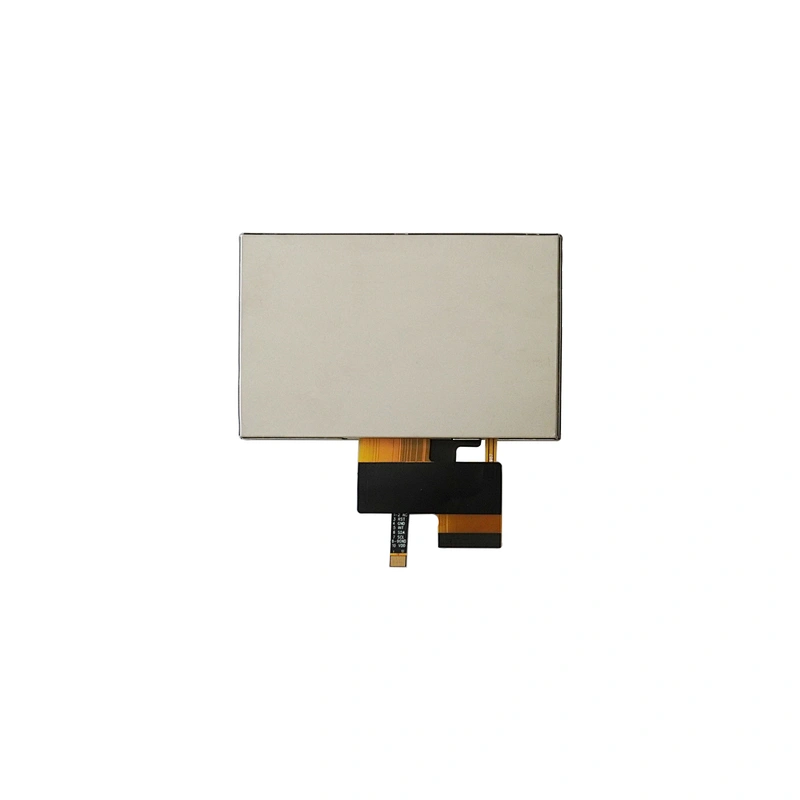

This product accords with RoHS. Product Pictures 4.3 inch 480*272 TFT LCD with All Viewing Angle with Capacitive Touch Panel.
| ITEM | SPECIFICATION |
| Size | 4.3”TFT/Transmissive |
| LCD Type | Normally Black |
| Viewing Direction | All |
| Module Size (W * H ) | 105.5* 67.2 mm |
| Active Area (W * H) | 95.04 * 53.856 mm |
| Dot Pitch (W*H)) | 0.198*0.198 mm2 |
| Numbers of Dots (Pixels) | 480 (RGB) * 272 |
| Driver IC | SC7283 / ILI6485 |
| Backlight Type | 10 LEDs |
| Surface Luminance | 475 cd/m² Typical |
| Interface Type | TTL |
| Input Voltage | 3.3 V Typical |
| With/ without Touch Panel | With CTP |
| Storage Temperature | -20℃ - 70 ℃ |
| Operating Temperature | -10℃ - 60℃ |
| Humidity | 90% (Max 60℃ ) RH |
